Pallet Racking
Acrow Manufacture a vast range of static racking systems, either to ACROW specifications or tailor-made to suit customer requirements. The welded Series 75 Louvre 2-part pallet storage system gives maximum rigidity and has an integral beam safety-locking tab on the beam connector.
Our End Frames range from Extra Light Duty to Extra Heavy duty (3 tons to 24 tons) and (55mm face to 120mm face) and can be bolted or welded, depending on client requirements. They can be rolled to their maximum height in one piece, due to no limits of Paint Plant Length. Preferred systems are – Acrow Series 70 / 75, Acrow Q-lock (Dexion) or Symo Rack

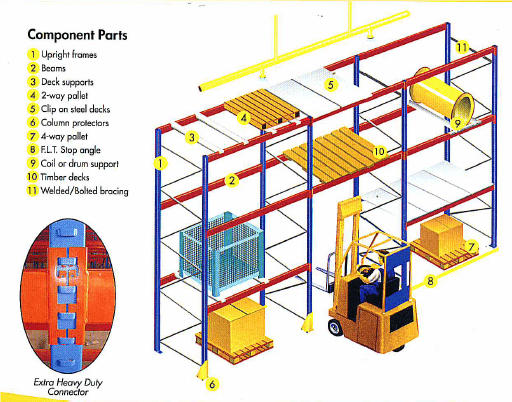

Acrow also produces various bolted racking systems for local and export markets. All systems are fully adjustable and have add-on capability both in length and height. A full range of accessories are available e.g. Clip-over decks, drum supports, backstop and bumper beams, back-to-back ties and timber decks. Loading capacities are specified on consultation with our sales and marketing division.
Our Acrow Crimped Box Beams are unique and specially formulated for extra strength and durability as they have a superior load capacity compared to other standard Box Beams available on the market. Acrow achieves this due to a second rolling stage performed on the box beams by crimping them into a permanent fixed position. Acrow is tooled-up to manufacture most systems available on the market upon request.
